MCI919 Series Oil Pressure Pulse Torque Tester
Category: Auxiliary Products Hits:
MCI919 series torque tester. The main function is for oil pressure pulse pneumatic tool. Test for output torque and pulse number of oil pressure pulse tool. Instrument in the latest test platform development, MCI platform strong comprehensive strength, high technology to realize various functions, high-speed sampling to get all kinds of data processing, realize the precise analysis of all kinds of tools. Display 8 languages, convenient for users all over the world.
■ The display is adopting OEL. It enables to show force values, unit and others very clearly.
■ The display has 3 separated rows.
■ Eight languages, universal, accessible
1. Battery Battery status 2. Date Today's date 3. Timer Set time. 4. Peak mode Maximum torque 5. Number of pulses |
Model | MCI919-QLS Series |
Measuring units | N.m、Kgf.cm、Lbf.in |
Pulse Number Range | 0-999 |
Measuring Time | 1～10 Seconds |
Display | Three-digit display |
Accuracy | ±0.5% |
Auto Clear Time | 1to 60 seconds to reset automatically, manually reset 0.0 seconds |
| Power | DC7.5V 1300mA |
| Automatic memory function | Automatic memory 1000 data . Manual memory |
| Weight | About 600g |
| TRACK | The torque value is shown in real time with the torque change |
| PEAK | The highest value of torque is hold-displayed |
A wide range of test stands and gripping fixtures

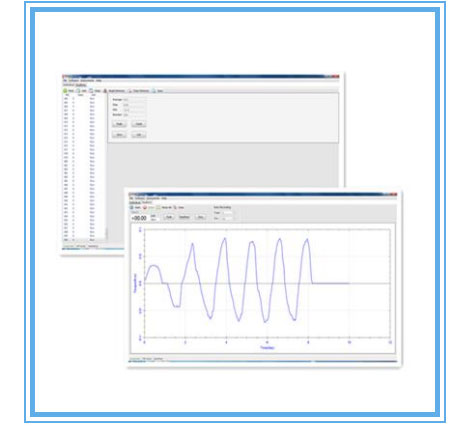

Software
Tabulates and plots also calculates statistics, exports to Excel, and more.
| MODEL | Maximum load | Minimum load | ||||
| N.m | Kgf.cm | Lbf.in | N.m | Kgf.cm | Lbf.in | |
| MCI919-QLS-20N.m | 20.00 | 200 | 173.6 | 0.01 | 0.1 | 0.1 |
| MCI919-QLS-50N.m | 50.00 | 500 | 434.0 | 0.01 | 0.1 | 0.1 |
| MCI919-QLS-100N.m | 100.0 | 1000 | 868.0 | 0.1 | 1 | 1 |
| MCI919-QLS-200N.m | 200.0 | 2000 | 1736 | 0.1 | 1 | 1 |
| MCI919-QLS-500N.m | 500.0 | 5000 | 4340 | 0.1 | 1 | 1 |
| MCI919-QLS-1000N.m | 1000 | 10000 | 8680 | 1 | 10 | 1 |
MCI919-QLS oil pressure pulse torque tester are shipped as shown at left, and include the following accessories:
(1) Conversion head
(1) Hard link
(1) Aluminum box
(1) AC adapter
(1) Software CD data line(Purchase)

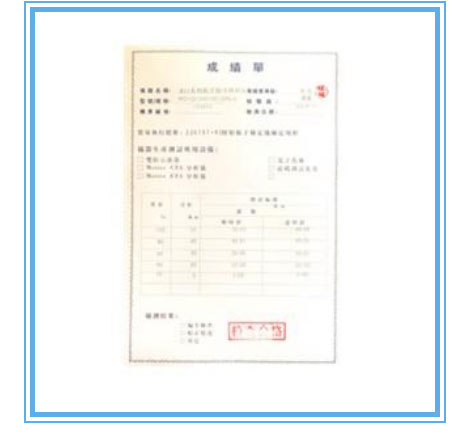

| Instruction | Certificate | |
 |  |
Model
Attachments | MCI919-QLS | |
 | Conversion head | MCI919-QLS |
 | Hard link | MCI919-QLS |
Consumable parts | ||
| Gauge software | MCI919-QLS |
| AC adapter | Spare AC adapter, 100V-240V 50/60HZ |
| Load cell | 10N.m 20N.m 30N.m 50N.m 100N.m |
| Load cell | 200N.m 400N.m |
| Load cell | 1000N.m 1500N.m |
| Battery | 4 sections, 1 group |
Sensor size chart | Model | A | B | C | D | E | F (3 equal parts) | G (Square) |
QLS 20N.m | Φ36 | 62 | 8 | Φ74 | Φ48 | Φ6.4 | 9.5sq 3/8 " | |
| QLS 100N.m | Φ60 | 73 | 10 | Φ110 | Φ90 | Φ8.3 | 12.7sq 1/2 " | |
| QLS 200N.m | Φ60 | 73 | 10 | Φ110 | Φ90 | Φ8.3 | 12.7sq 1/2 " | |
| QLS 1000N.m | Φ80 | 99 | 15.5 | Φ140 | Φ116 | Φ10.5 | 19sq 3/4" | |
Sensor outline drawing |
| |||||||
