MPE Series Torque Driver

Category: Torque Driver Hits:

Professional digital torque wrench breaks through the problem that traditional torque tools cannot determine the amount of torque to be applied, and has functions such as displaying torque warning values, memory data and transmission. This skill allows the operator to precisely control the tightening torque value of the wrench, which is very suitable for factory production. Full inspection and quantitative inspection quality analysis to improve production quality and reasonable price.


Product details
Features


■ Function operation: torque value setting, unit setting, mode setting.

■ Unit settings can be easily switched with the press of a button.

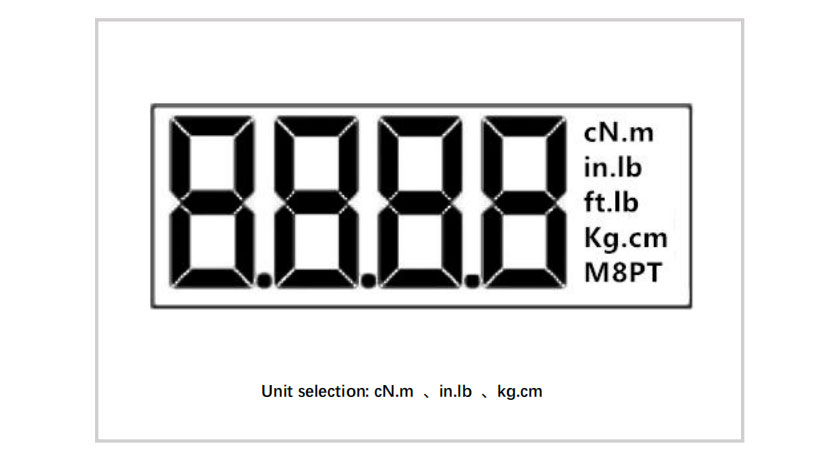

Display indicators

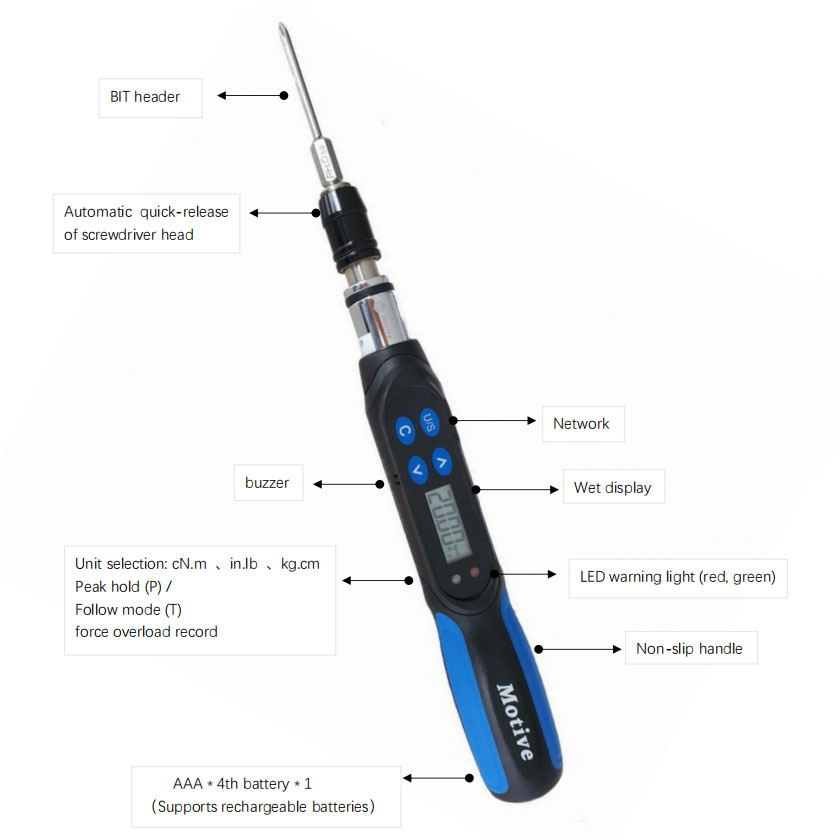

Names and functions of parts




Specifications


MODEL*1
(MPE Series)

MPE-05BN

MPE-2BN

MPE-4BN

Accuracy*2

CW: ±2%
CCW: ±3%

CW: ±2%
CCW: ±3%

CW: ±2%
CCW: ±3%

Maximum torque value

50cN.m
4.42in.lb
5.1kg.cm

200 cN.m
17.7in.lb
20.41kg.cm

400 cN.m
35.39in.lb
40.82kg.cm

Torque test range

5-50 cN.m
0.44-4.42in.lb
0.51-5.1kg.cm

10-200 cN.m
0.88-17.7in.lb
1.02-20.41kg.cm

20-400 cN.m
1.77-35.39in.lb
2.04-40.82kg.cm

Guaranteed accuracy range

10-50 cN.m
0.88-4.42in.lb
1.02-5.1kg.cm

40-200 cN.m
3.54-17.7in.lb
4.08-20.41kg.cm

80-400 cN.m
7.08-35.39in.lb
8.16-40.82kg.cm

Resolution

0.1 cN.m
0.01in.lb
0.01kg.cm

0.1 cN.m
0.01in.lb
0.01kg.cm

0.1 cN.m
0.01in.lb
0.01kg.cm

LED warning light

2LED(1Red+1Green)

2LED(1Red+1Green)

2LED(1Red+1Green)

Operation mode

Peak hold (P)  Follow mode (T)

Peak hold (P)
Follow mode (T)

Peak hold (P)
Follow mode (T)

Unit selection

cN.m in.lb kg.cm

cN.m in.lb kg.cm

cN.m in.lb kg.cm

Wrench length(mm)

193

203

203

BIT header insertion size

1/4

1/4

1/4

Head special device

Automatic quick-release of screwdriver head

Automatic quick-release of screwdriver head

Automatic quick-release of screwdriver head

Communication transmission function

NO

NO

NO

Number of keys

4

4

4

Battery * 3

AAA×1

AAA×1

AAA×1

Operating temperature

-10℃-60℃

-10℃-60℃

-10℃-60℃

Storage temperature

-20℃-70℃

-20℃-70℃

-20℃-70℃

Humidity

Up to 90% without condensation

Up to 90% without condensation

Up to 90% without condensation

Drop test

1 meter

1 meter

1 meter

Vibration test*4

10g

10g

10g

Environmental test*5





PASS

Electromagnetic compatibility test*6





PASS

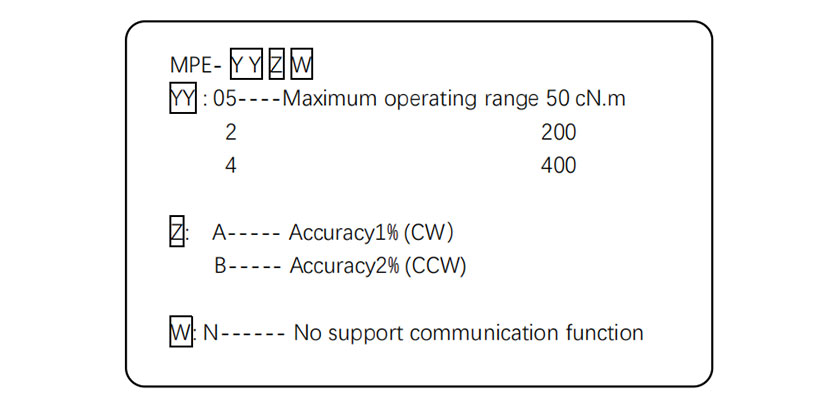

*1 Product name selection guidelines


*2:The accuracy guarantee range is 20-100% of the maximum range, and the last digit is not included. Torque accuracy is a typical value. The middle groove on the grip is the calibration point. To ensure accuracy, it is recommended to calibrate once a year.

*3:One AA battery (Toshiba R6UG carbon zinc battery)

*4: Horizontal and vertical test

*5:Environmental test:

a. High temperature test,

b. Low temperature test,

c. High temperature and high humidity test

d. temperature change test,

e. impact test, f. vibration test, g. drop test

*6:Electromagnetic compatibility test:

a. Electrostatic test (ESD),

b. Radiation tolerance (RS),

c. Radiation measurement (RE)



Ordering Information



Capacity & Resolution

Model

Capacity

Indication

Resolution

MPE-05BN

50 cN.m(5.1Kg.cm)

50 cN.m(5.1Kg.cm)

0.1cN.m(0.01Kg.cm)

MPE-2BN

200 cN.m(20.41Kg.cm)

200 cN.m(20.41Kg.cm)

0.1cN.m(0.01Kg.cm)

MPE-4BN

400 cN.m(40.82Kg.cm)

400 cN.m(40.82Kg.cm)

0.1cN.m(0.01Kg.cm)

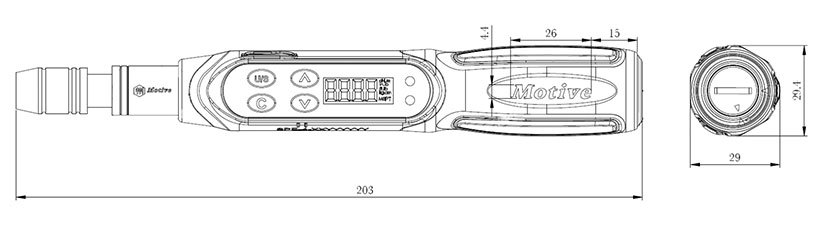

Dimensions(mm)
