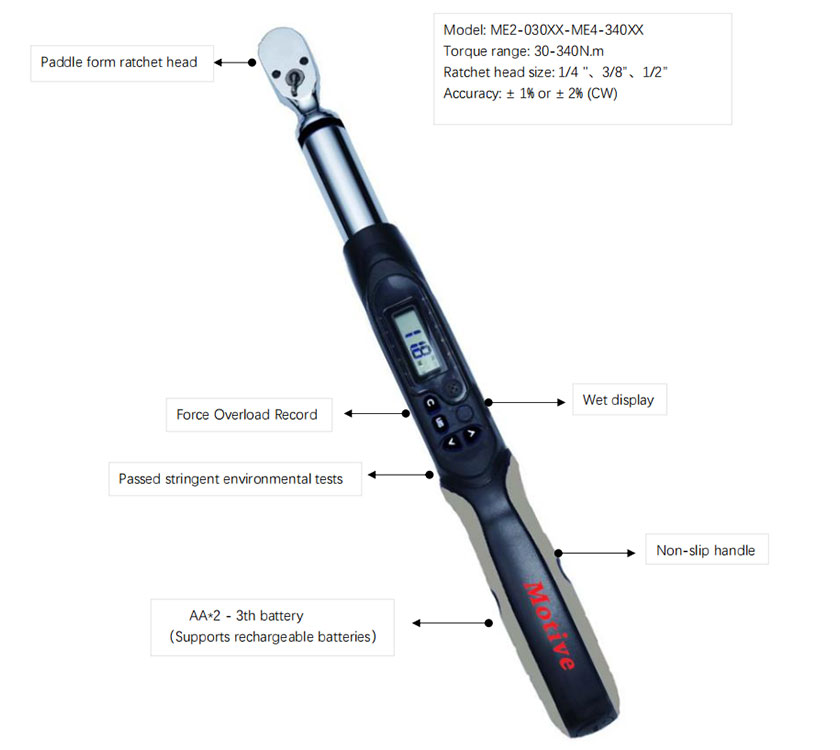

ME Series Torque Wrench
Category: Torque Wrench Hits:
Professional digital torque wrench breaks through the problem that traditional torque tools cannot determine the amount of torque to be applied, and has functions such as displaying torque warning values, memory data and transmission. This skill allows the operator to precisely control the tightening torque value of the wrench, which is very suitable for factory production. Full inspection and quantitative inspection quality analysis to improve production quality and reasonable price.
■ Minimalist function operation: torque value setting, unit setting, mode setting

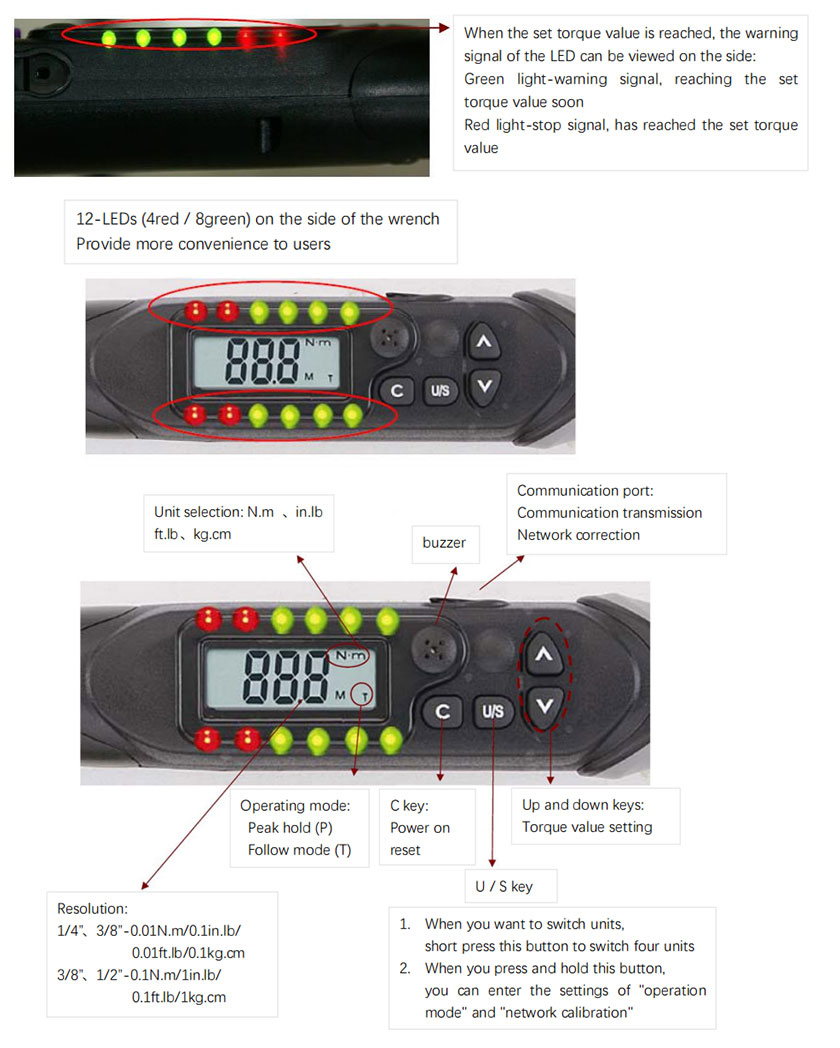

■ There are 12 LEDs on the side of the wrench. Users can see on the side that the torque value has been reached, and cooperate with the buzzer sound to provide more convenience to the user.

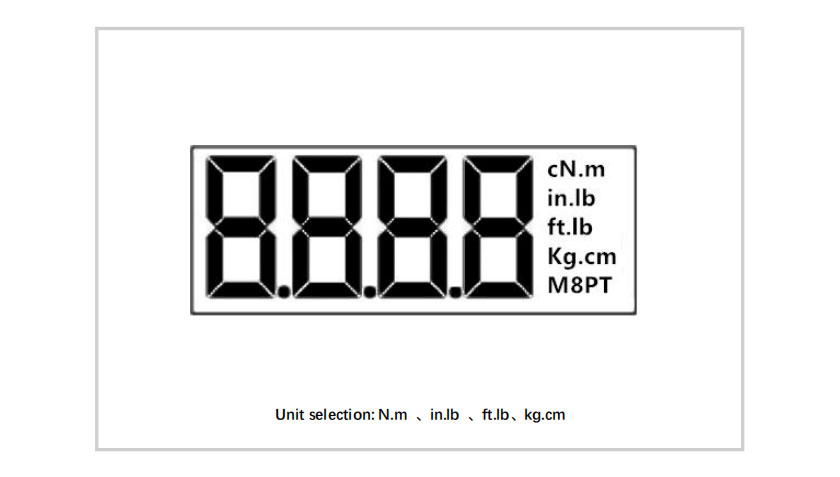

■ As long as you press a button, you can easily switch the unit setting.
MODEL*1 | ME2-030BN | ME3-135BN | ME4-135BN | ME4-200BN | ME4-340BN |
BN | BN | BN | BN | BN | |
Accuracy*2 | CW: ±2% | CW: ±2% | CW: ±2% | CW: ±2% | CW: ±2% |
Maximum torque value | 30N.m/22.12ft.lb | 135N.m/99.5ft.lb | 135N.m/99.5ft.lb | 200N.m/147.5ft.lb | 340N.m/250.7ft.lb |
Torque test range | 1.5-30N.m | 6.8-135N.m | 6.8-135N.m | 10-200N.m | 17-340N.m |
Guaranteed accuracy range | 6-30N.m | 27-135N.m | 27-135N.m | 40-200N.m | 68-340N.m |
Resolution | 0.01N.m/0.01ft.lb | 0.1N.m/0.1ft.lb | 0.1N.m/0.1ft.lb | 0.1N.m/0.1ft.lb | 0.1N.m/0.1ft.lb |
LED warning light | 12LED(4Red+8Green) | 12LED(4Red+8Green) | 12LED(4Red+8Green) | 12LED(4Red+8Green) | 12LED(4Red+8Green) |
Operation mode | Peak hold (P) / | Peak hold (P) / | Peak hold (P) / | Peak hold (P) / | Peak hold (P) / |
Unit selection | N.m in.lb | N.m in.lb | N.m in.lb | N.m in.lb | N.m in.lb |
Wrench length(mm) | 390 | 415 | 415 | 530 | 650 |
Ratchet square head (inches) | 1/4 | 3/8 | 1/2 | 1/2 | 1/2 |
Head special device | Paddle form ratchet head | Paddle form ratchet head | Paddle form ratchet head | Paddle form ratchet head | Paddle form ratchet head |
Number of ratchet teeth | 36 | 36 | 36 | 36 | 36 |
Communication transmission function*3 | NO | NO | NO | NO | NO |
Number of keys | 4 | 4 | 4 | 4 | 4 |
Battery * 4 | AA×2 | AA×2 | AA×2 | AA×2 | AA×2 |
Operating temperature | -10℃~60℃ | -10℃~60℃ | -10℃~60℃ | -10℃~60℃ | -10℃~60℃ |
Storage temperature | -20℃~70℃ | -20℃~70℃ | -20℃~70℃ | -20℃~70℃ | -20℃~70℃ |
Humidity | Up to 90% without condensation | Up to 90% without condensation | Up to 90% without condensation | Up to 90% without condensation | Up to 90% without condensation |
Drop test | 1 meter | 1 meter | 1 meter | 1 meter | 1 meter |
Vibration test*5 | 10g | 10g | 10g | 10g | 10g |
Wrench life test*6 | 10000 | 10000 | 10000 | 10000 | 10000 |
Environmental test*7 | PASS | PASS | PASS | PASS | PASS |
Electromagnetic compatibility test*8 | PASS | PASS | PASS | PASS | PASS |

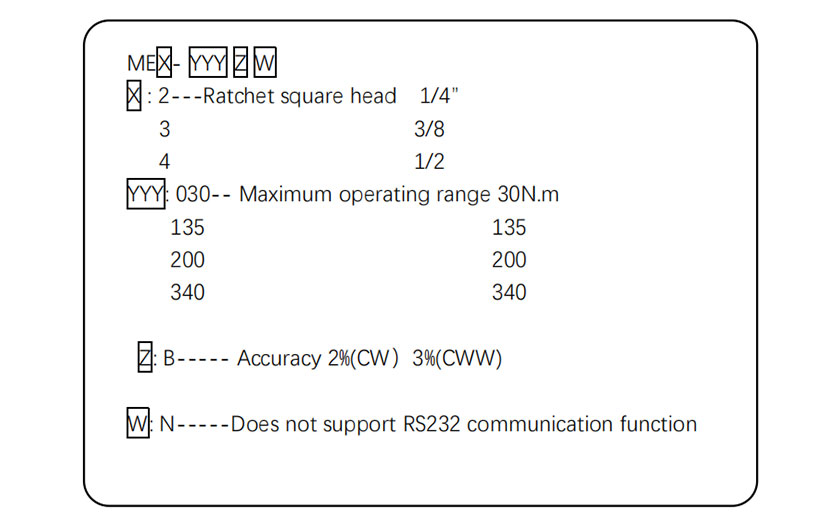

*1 Product name selection guidelines
*2:The accuracy guarantee range is 20-100% of the maximum range, and the last digit is not included. Torque accuracy is a typical value. The middle groove on the grip is the calibration point. To ensure accuracy, it is recommended to calibrate once a year.
*3:Use a special RS232 cable (accessory) to send data to the computer
*4:Two AA batteries (Toshiba R6UG carbon zinc battery)
*5:Horizontal and vertical test
*6:"One time" refers to pushing the wrench from 0N.m to the maximum marked value of the wrench, and then back to 0N.m
*7:Environmental test:
a. High temperature test,
b. Low temperature test,
c. High temperature and high humidity test
d. temperature change test,
e. impact test, f. vibration test, g. drop test
*8:Electromagnetic compatibility test:
a. Electrostatic test (ESD),
b. Radiation tolerance (RS),
c. Radiation measurement (RE)
Capacity & Resolution | ||||
Model | Capacity | Indication | Resolution | |
ME2-030BN | 30N.m | 30N.m(22.12ft.lb | 0.01N.m(0.01ft.lb | |
ME3-135BN | 135N.m | 135N.m(99.5ft.lb | 0.1N.m(0.1ft.lb | |
ME4-135BN | 135N.m | 135N.m(99.5ft.lb | 0.1N.m(0.1ft.lb | |
ME4-200BN | 200N.m | 200N.m(147.5ft.lb | 0.1N.m(0.1ft.lb | |
ME4-340BN | 340N.m | 340N.m(250.7ft.lb | 0.1N.m(0.1ft.lb |
