MOT-KT Series Industrial Multi-purpose Adjustable

MOT-KT Series Industrial Multi-purpose Adjustable

Category: Auxiliary Products Hits:

One size fits all design (M1.0-M5.0) that requires only simple rail adjustment for different sizes of screws to be quickly and steadily sorted and fed. Lower purchasing costs.

●Separate track design, free adjustment, patent design, fast and stable feeding, no screw jamming

●The feeding and vibration drive are controlled independently, and the ideal delay stop time can be set freely. When the abnormal situation occurs, the screw machine starts the fault alarm function

●Adjustable screw supplying and feeding speed

●New patented MOT-1030TC fixed rail and rotary plate model fits any shape of M1.0-M3.5 screws with flawless screw feeding

●Various models of standard, counting, mini-screw, automation for different needs


Product details
Download
MOT-KT Series Industrial Multi-purpose Adjustable Screw Feeder
Models & Specification


Item

MOT-KT1050/
MOT-KT1050C

MOT-KT1030TC

MOT-KT1060/
MOT-KT1060C

MOT-KT2560

Applicable
screw

Thread Diameter

M1.0/1.2/1.4/1.7/2.0/2.3mm
M2.6/3.0/3.5/4.0/5.0mm

M1.0-3.5mm

M1.0-6.0mm

M1.0-5.0mm

Screw Head Type

JIS: Pan, Button, Truss, Round, Flat, Wafer, w/ Spring Washer, Spring +Flat Washer;
JCIS: 1, 2, 3 & Pan

JIS: dish head, clamping, pressure, Hu Qin head (countersunk or elliptical countersunk head) with or without gasket;
JCIS: dish head type 1, 2, 3, 4

Screw Head Material

Iron or Ferromagnetic metals

Thread Length
(Max)

20mm

10mm

20mm

20mm

Thread Length
(Min)

Single: diameter × 1.0;
with spring washer: diameter + (0.5 × diameter);
With spring washer and washer: diameter + (1.1 × diameter)

Output Speed

~2/sec

~1/sec 0.3sec

~2/sec

~1/sec 0.3sec

Protection/Restore

Overload Protection, reverse power polarity prevention

Input Voltage

100-240V 50/60HZ

Output Voltage

DC12V 550mA

DC15V 1.5A

DC12V 550mA

DC15V 1.5A

Dimensions

180*125*150mm

202.5*126*149mm

232*162*169mm

263.5*162.4*169mm

Weight

2.5Kg

3.0kg

4.3kg

4.2kg

Accessories

User manual, generic as adapter, Hexagon wrench

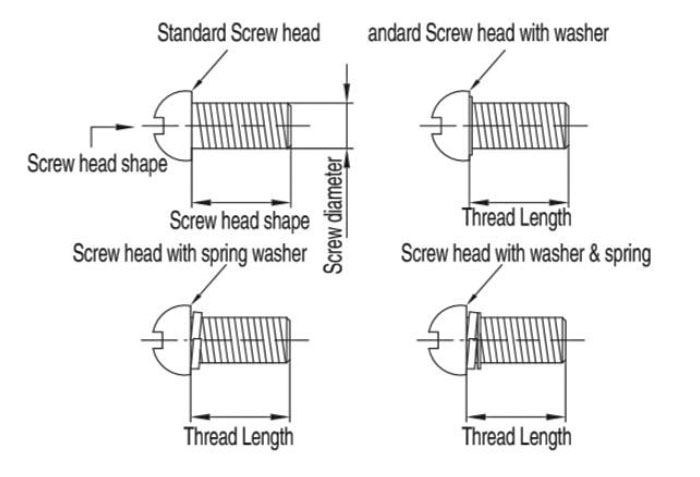

Screw Parameter
