KS1-L Series Brushless Semi-automatic Screwdriver
Category: Screwdriver Hits:
●Using high-performance brushless motor, super life and durability, carefully designed and made
●Full voltage input AC (100~240V) output DC (20~30V), frequency conversion constant voltage function, torque, temperature, speed are more stable.Temperature rise is lower than Japanese products
●Ergonomic design, small size, light weight, wide torque range, can be applied to a variety of screw locking needs, reducing procurement costs
●Life-grade service life design, almost no maintenance, motor and mechanical parts are 2-3 times more durable than other brands
●Leading the industry for more than 40 years, low-voltage high-efficiency switching power supply and low-voltage screwdriver design, continuous innovation, making products more accurate, more perfect and more durable

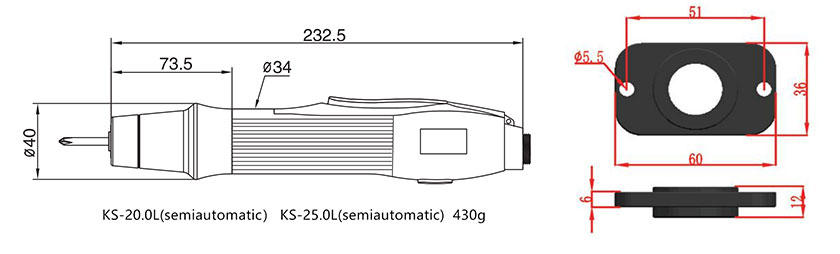

Model No. | KS1-20.0L | KS1-25.0L | |
Operating Voltage(VDC) | 20~30VDC | ||
No Load Power | 60W | ||
Torque Range | 4.0~20.0 | 5.0~25.0 | |
Torque Accuracy | Ultra precision | ||
No Load Speed (rpm) ±10% | 700~1000 | 550~750 | |
Weight(g) | 430g | ||
Diameter(mm) | ∅34mm | ||
Length(mm) | 232mm | ||
Applicable (Hard) | 2.6~4.5 | 3.5~5.0 | |
Power Supply | PRO-530D |
Input Power(VAC) | 110~220VAC |
Output Power(VDC) | 20~30V |
Dimensions(mm) | 110*62.5*31.5mm |
Name | Features | |
| Industrial Grade Parallel Boom | Reduce operator fatigue, improve locking |
| Industrial Grade Multi-purpose | Patented design for fast and stable feeding |
| Bullet Crane | Hanging screwdriver, easy to operate, suitable for a |
| Automatic Fixed Seat | Universal automatic assembly fixing seat |
| 90 ° Elbow | Suitable for narrow spaces, special environments. |
| Rack | Screwdriver placement, easy to operate, |
