KS-L(P) Series Brand New Medium Brushless Screwdriver
Category: Screwdriver Hits:
●Small size and large torque, surpassing the benefits of other brand by more than 30%. Create a new electric screwdriver standard for the latest 10 years
●Prototype machine has more than 20 million life tests, the overall temperature rise is 50% lower than other brands
●The most advanced gyroscope horizontal design can reduce the defect rate by more than 30%
●To prevent the aging of the torque, the body does not heat, solve the biggest shortcoming of the commercial screwdriver. At present, it is the best choice for the commercial screwdriver
| Lever Start | Push Start | ||||||||
Model No. | KS-16FL | KS-20L | KS-30L | KS-45DL | KS-16FP | KS-20P | KS-30P | KS-45DP | |
Operating Voltage(VDC) | 20-30 | 20-30 | |||||||
No Load Power | 75W | 75W | |||||||
Torque Range | 4.0~16.0 | 8.0~20.0 | 10~30 | 15~45 | 4.0~16.0 | 8.0~20.0 | 10~30 | 15~45 | |
Torque Accuracy | Ultra precision | Ultra precision | |||||||
No Load Speed | 1400~2000 | 1000~1500 | 650~1000 | 150~300 | 1400~2000 | 1000~1500 | 650~1000 | 150~300 | |
Weight(g) | 546 | 546 | 546 | 546 | 546 | 546 | 546 | 546 | |

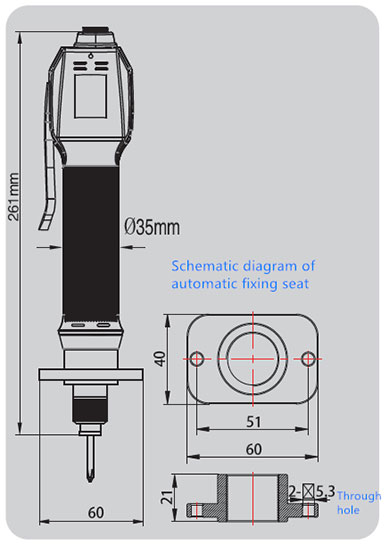

Length(mm) | 261 | 261 | 261 | 261 | 261 | 261 | 261 | 261 | |
Applicable Screws | 2.2~4.2 | 2.6~4.0 | 3.0~5.0 | 3.5~5.0 | 2.2~4.2 | 2.6~4.0 | 3.0~5.0 | 3.5~5.0 | |
Power Supply | APM-302A |
Input Power | 100-240V~,50/60Hz,2A |
Output Power | 20-30V, 2.5A,75W |
Dimensions | 172*84*46mm |
Weight | 380g |
Name | Features | |
| Industrial Grade Parallel Boom | Reduce operator fatigue, improve locking |
| Industrial Grade Multi-purpose | Patented design for fast and stable feeding |
| Bullet Crane | Hanging screwdriver, easy to operate, suitable for a |
| Industrial Elbow | Built-in needle roller bearings, |
| Industrial Grade Lock Screw | Replace power supply.Various functions such as |
| Practical Support Arm | Install vertical bomb crane to reduce fatigue, |
