KIC Series Medium Clutch Sensor Torque Display Transmission Screwdriver
Category: Screwdriver Hits:
●Built-in sensor instantly displays the completed torque value
●According to the set torque and error value, the locking result is judged in real time OK / NG
●Locking torque value can be displayed on the screwdriver and AI control box at the same time

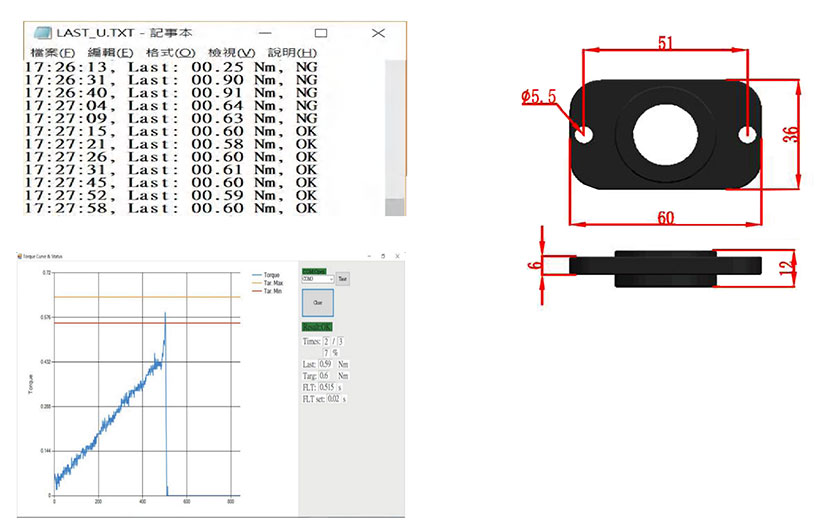

●The lock torque value and torque curve can be displayed on the computer screen via USB
●Locking torque can be stored, which is conducive to quality trace back and improvement
Model No. | KIC-25.0L | KIC-40.0L |
Operating Voltage(VDC) | 30VDC | |
No Load Power | 75W | |
Torque Range | 10~25 | 15~40 |
Torque Accuracy | Ultra precision | |
No Load Speed | 650~1000 | 650~1000 |
Weight(g) | 546 | 546 |
Diameter(mm) | ∅36mm | ∅36mm |
Length(mm) | 261 | 261 |
Applicable Screws | 3.0~4.0 | 3.5~5.0 |
Power Supply | AMC-75 | |
Input Power | 110~220VAC | |
Output Power | 30V | |
Dimensions | 172*84*61mm | |
Name | Features | |
| Industrial Grade Parallel Boom | Reduce operator fatigue, improve locking |
| Industrial Grade Multi-purpose | Patented design for fast and stable feeding |
| Automatic Fixed Seat | Universal automatic assembly fixing seat |
| Bullet Crane | Hanging screwdriver, easy to operate, suitable for a |
| Industrial Elbow | Built-in needle roller bearings, |
| Industrial Grade Parallel Boom | Reduce operator fatigue, improve locking |
