MOT-K-LB Series Industrial Ergonomics Automatic Pneumatic Screwdriver

Category: Pneumatic Screwdriver Hits:

●Single inlet and double exhaust special material blades, create a large torque output range, longer service life of the motor

●Staggered track patent clutch structure, single point tripping torque more stable, large torque range output, meet different locking needs

●Five axis synchronous processing, alloy steel gear, up and down concentric transmission, low noise, low vibration, high precision state

●Ergonomic shell design, soft rubber handle, novel appearance, comfortable grip, long-term operation is not easy to fatigue

●Forward and reverse switch, quick change of driver head, quick adjustment of torque, simple operation


Product details
Type specification


Model No.

Working Pressure (kg/cm²)

Inner Diameter (mm)

Torque Range
(kgf.cm) N.m

No Load Speed
(rpm)±10%

Screw Threads

Lever Start

90 ° bend

Hard

Soft

MOT-K10LB

MOT-K10LB/RA

5.0

6.35

0.5~2.0  0.05~0.2

1000

1.0~2.2

1.0~1.7

MOT-K20LB

MOT-K20LB/RA

5.0

6.35

1.0~8.0  0.1~0.8

1000

1.7~3.3

1.3~2.7

MOT-K30LB

MOT-K30LB/RA

5.0

6.35

2.0~16  0.2~1.6

1800

2.2~4.2

1.7~3.2

MOT-K40LB

MOT-K40LB/RA

5.0

6.35

5.0~30  0.5~3.0

1000

2.8~5.0

2.3~4.0

MOT-K45LB

MOT-K45LB/RA

5.0

6.35

8.0~40  0.8~4.0

1000

2.8~5.5

2.3~4.5

MOT-K50LB

MOT-K50LB/RA

8.0

9.5

7.0~50  0.7~5.0

1400

2.9~6.0

2.6~4.9

MOT-K55LB

MOT-K55LB/RA

8.0

9.5

7.0~65  0.7~6.5

1000

2.9~6.4

2.6~5.4

MOT-K60LB

MOT-K60LB/RA

8.0

9.5

15~95  1.5~9.5

550

4.1~7.0

3.3~6.0

MOT-K65LB

MOT-K65LB/RA

8.0

9.5

25~120  2.5~12.0

150

5.0~8.0

4.0~7.0

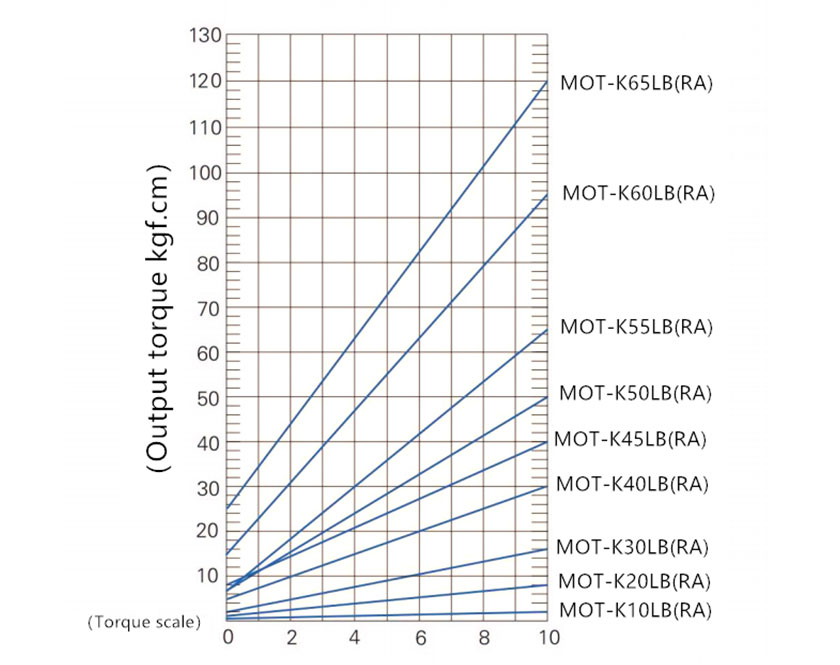

Output torque curve

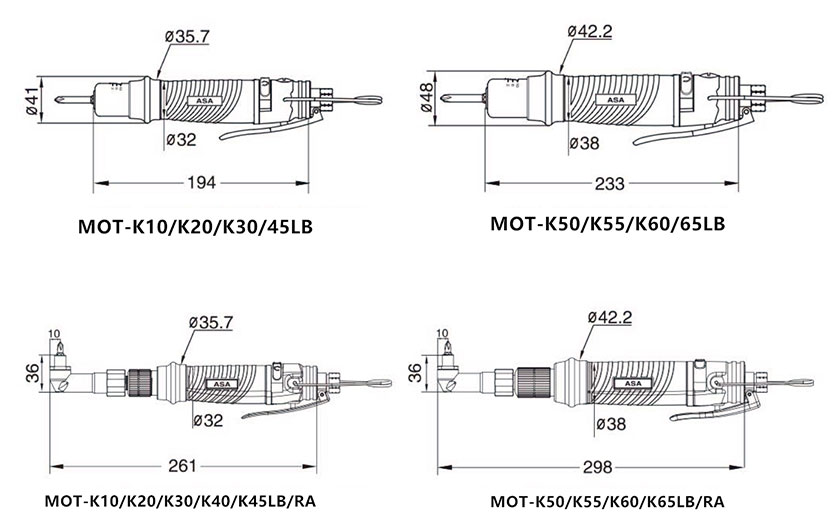

Appearance Start
