ZDP Series Digital Torque Driver Tester
Category: Torque Driver Hits:
ZDP series is the torque measuring instrument which have various function for measuring very diverse torque, besides it is small and lightweight.
1. Torque measurement of the extrusion and return screws or bolts;
2. Non-destructive testing and strength inspection of a screw or bolt;
3. Torque measurement rotary switch;
4. Rotational resistance of the motor shaft.
■ Ergonomic design. Rugged metal housing construction for reliable and durable products.
■ The LCD screen can be flipped to display measurement data and units.
■ Instant tracking test and two peak modes are available.
■ Measurement units Kgf.cm N.m/N.cm or lbf-in are available for selection.
■ Programmable high/low value color LED indicators and output signals to indicate pass/fail testing.
■ The instrument can store 1000 data.
■ Can be connected to the computer with RS232C or USB interface. It can process 1000 books per second and can generate analysis charts based on statistics.
■ range overload and battery low voltage indication.
■ The LCD screen can display the positive and negative signs, which visually show the loosening and tightening of the screws.

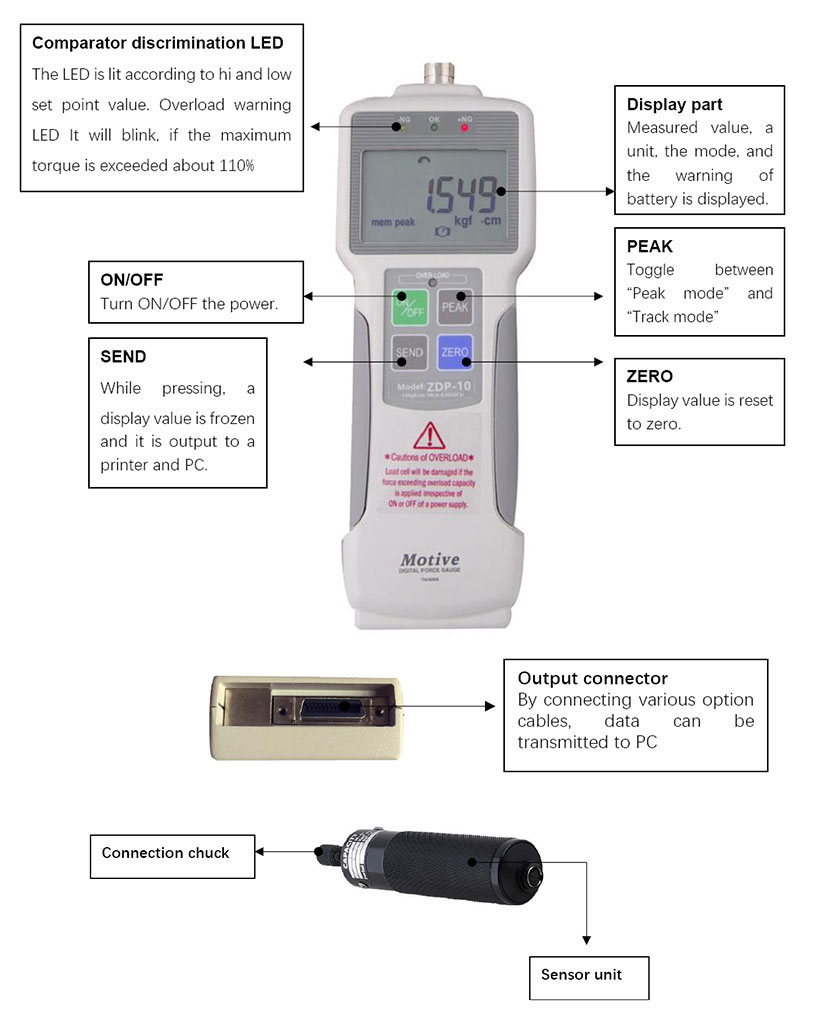

1.CW(clockwise) sign:
Express the torque of the CW(clockwise) direction.
2.CCW(counter clockwise) sign:：
Express the torque of the CCW(counter clockwise) direction.
3.3.Auto zero clear mode sign/:
AC mode is valid when it blinks.
4.Measurement value:
Maximum capacity and current damping
condition is displayed after power on.
A measurement value will be displayed if
torque is added to tip of sensor unit.
5.+/-sign change mode sign:
SC mode is valid when it is lit.
6.Auto acquisition mode sign:
AA mode is valid when it is lit.
PEAK mode is valid when it is lit.
8.Data hold sign:
It is displayed during data transmission by
pressing SEND key.
9.Low battery warning sign:
When battery's voltage is low, this warning
sign blinks. You need recharge the battery.
10.Alarm mode sign:
AL mode is valid when it is lit.
11.Auto power off mode sign:
AO mode is valid when it is lit.
12.Measuring unit:
Display the present measurement unit.
Model | ZDP |
Capacity | page 3 |
Accuracy | +/-0.2% full scale +/-1digit |
Measuring units | Kgf.cm N.m/N.cm or lbf-in |
Display | 4 digit LCD-Unit-Mode-Overload LED-Comparator LED (reversible) |
Sampling rate | 1000 times/sec |
Display update | 10 times/sec |
Overload capacity | 200% of full scale (LED flashing and buzzing beyond 110%) |
A/D converter | 24 bit delta sigma |
Micro processor | 8 bit 1 tip micro processor |
Battery use | Approx. 8 hours (10 hours for charging) |
Use temperature | 0~+40 degree Celsius |
Use humidity | 20~80%RH(relative humidity) |
Power | Internal NiMH rechargeable battery, AC adapter |
Peak mode | AND (CW and CCW) or OR (CW or CCW) selectalbe |
Comparator function | Programmable high / low set point with color code indicators |
Memory | Maximum 1000daa |
Display turn function | measured value and unit |
Alarm function | Overload and + NG (on / off selectable) |
Auto power off | 5, 10, 30, 60 min or OFF selectable |
External cut-off function | display maintain, zero clearing and select peak mode and track mode |
Dimension | length 220.5× width 78× height 32.3 mm |
weight | Approx 520g |
A wide range of test stands and gripping fixtures
Software

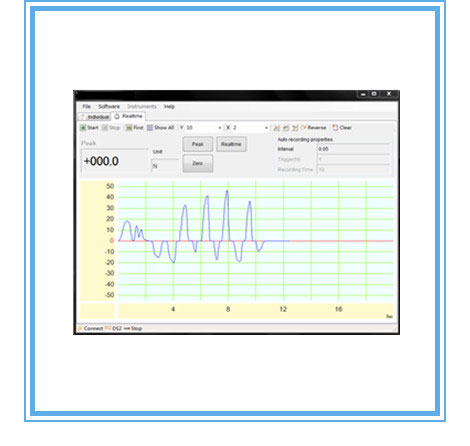

Tabulates and plots Also calculates statistics, exports to Excel, and more.

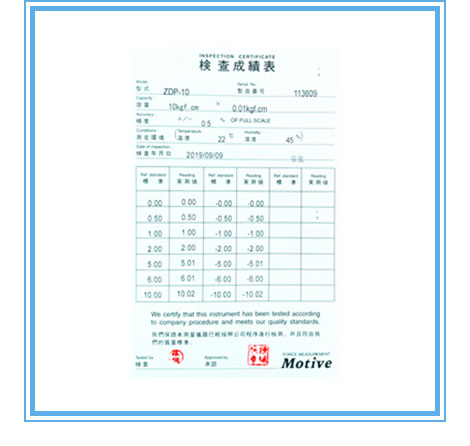

Certificate of calibration with data
TYPE | MAX.LOAD | MIN.LOAD | ||||
Kgf.cm | N.m | Lbf.in | Kgf.cm | N.m | Lbf.in | |
ZDP-5 | 5.000 | 0.500 | 4.340 | 0.001 | 0.001 | 0.001 |
ZDP-10 | 10.00 | 1.000 | 8.680 | 0.01 | 0.001 | 0.001 |
ZDP-20 | 20.00 | 2.000 | 17.36 | 0.01 | 0.001 | 0.01 |
ZDP-50 | 50.00 | 5.000 | 43.40 | 0.01 | 0.001 | 0.01 |
ZDP-100 | 100.0 | 10.00 | 86.80 | 0.1 | 0.01 | 0.01 |

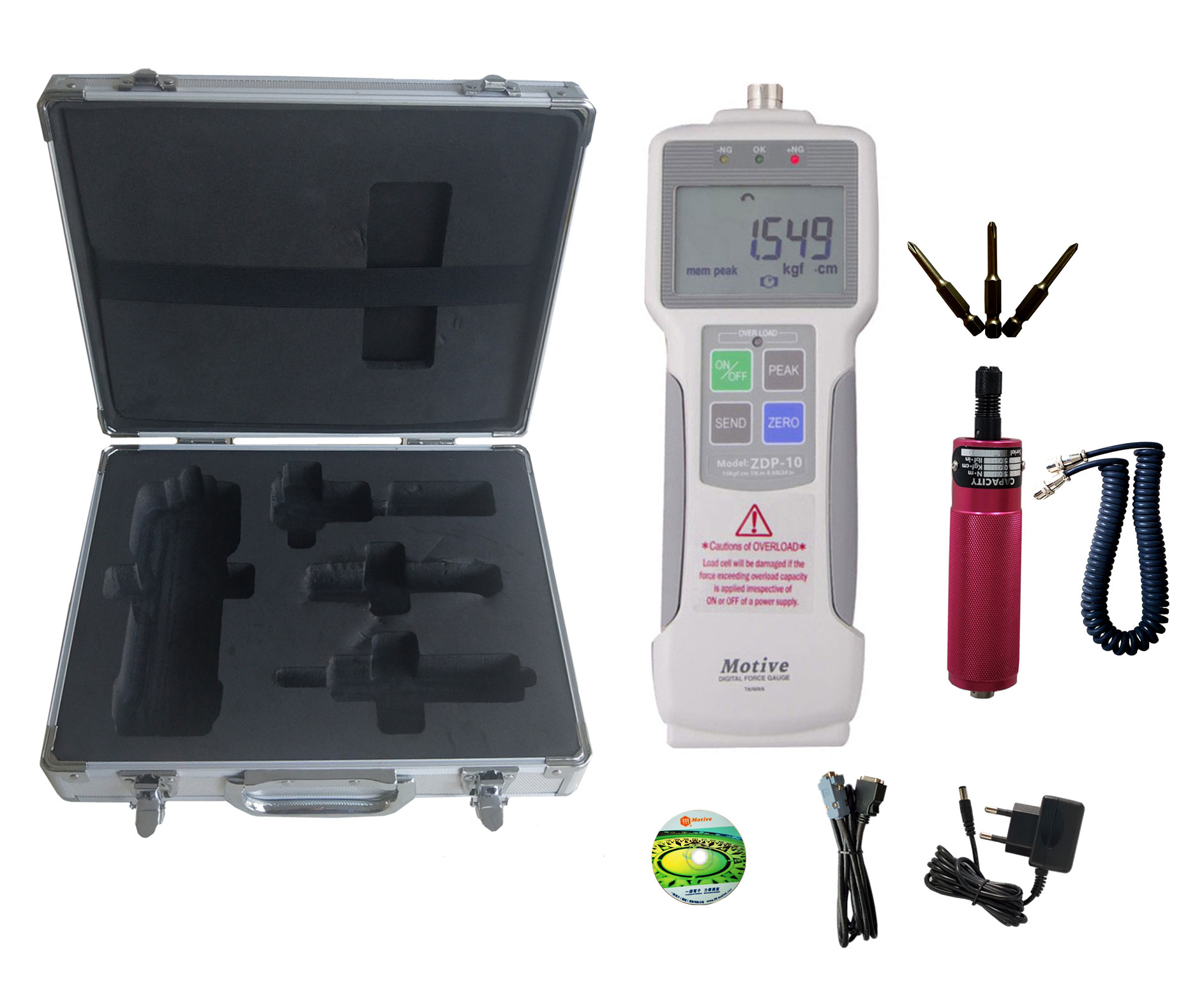

ZDP digital torque meters are shipped as shown at left, and include the following accessories:

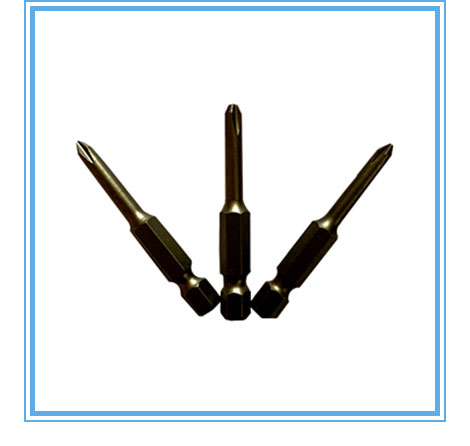

(1) 十Bit #0
(1) 十Bit #1
(1) 十Bit #2
(1) Instrument cable
(1) Carrying case
(1) AC adapter
(1) Software CD data line (Purchase)
| Instruction | Certificate | |
 |  |
Consumable parts | ||
| Gauge software | ZDP |
| AC | 100V-240V 50/60HZ |
| Load cell | 10Kgf.cm 50kgf.cm 100Kgf.cm |
| Battery | 4 sections, 1 group |
