HP Series Intelligent Digital Torque Tester
Category: Auxiliary Products Hits:
However high the quality of your screwdriver, you cannot make full use of its potential unless you down the right amount of torque for each job and make sure that is the torque being delivered. With a motive digital torque meter you can make torque settings on screwdrivers, check torque wrenches or make torque measurements of various kinds of rotation tools. With an optional attachment, it is also possible to transfer and aircraft measurement data to a computer for use in integrated production management systems.
Easy to use, accurate and low in cost, motive digital torque meters are used by manufacturers of electronic goods, cameras, watches and other kinds of precision instruments, as well as by makers of automobiles
■ Up to 100 data measurements can be stored in memory at a time.
■ Checks maximum, minimum and average torque measurements.
■ Torque value display can be automatically reset to zero.
■ Torque value display are automatically recalibrated.
■ Values are displayed digitally for ease and accuracy in reading out data.
■ Peak torque values are frozen until the display is reset to insure accuracy when setting torque of Instruments.
■ Can be set for rotation in either direction, for easy measurement of both tightening and loosening torque.
■ Counterclockwise torque measurement is indicated by a minus sign in front of displayed values.
■ The strain meter is directly attached to the torque sensor, as part of the instrument's simple, rugged design.
■ Can be integrated into a statistical process control system.
■ Small, light and operated by rechargeable battery, this instrument is highly portable.

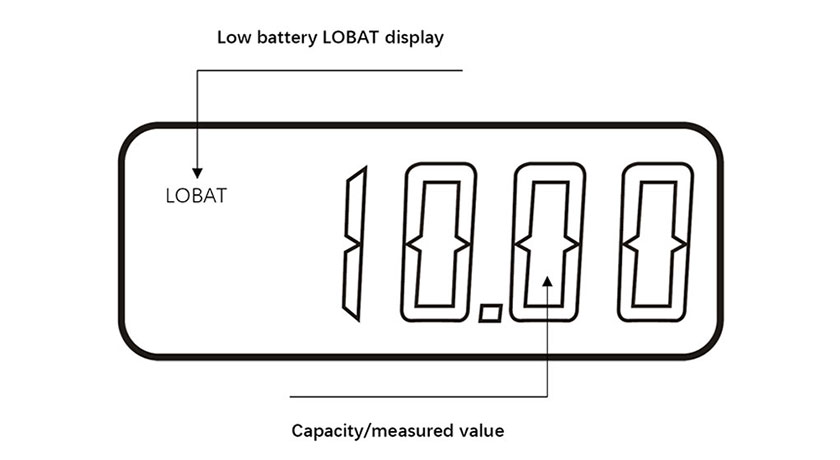

Measuring unit display
| Model | N.m |
| HP-10 | 0.000 |
| HP-50 | 0.00 |
| HP-100 | 0.00 |
Accuracy: | ±0.5% F.S. ±1digit |
Measuring unit： | N.m Kgf.cm Lbf.in |
Power: | Six 1.2V NI/MH cells 1300mA |
Recharge time: | UP to 6 hours |
Running time on full charge: | 8 hours |
Operating temperature: | 0 to +40℃ |
Battery life: | About 300 chargings |

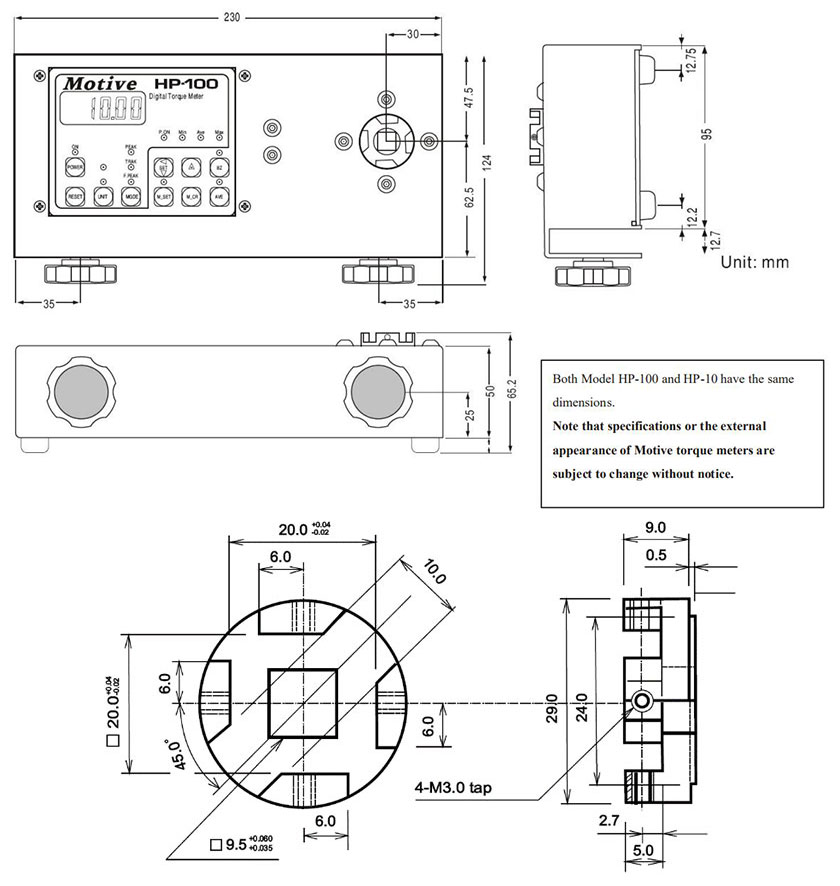

Dimensions: | See figure |
Weight: | Approx.1.8kg |
Battery charger: | Runs on 100-240V AC power (50/60HZ) |
A wide range of test stands and gripping fixtures
Software
Tabulates and plots Also calculates statistics, exports to Excel, and more.
Certificate of calibration with data
Capacity & Resolution
Model | Peak range | ||
N.m | Kgf.cm | Lbf.in | |
HP-10 | 0.015-1.000 | 0.15-10.00 | 0.15-9.00 |
HP-50 | 0.15-5.00 | 1.5-50.0 | 1.5-45.0 |
HP-100 | 0.15-10.00 | 1.5-100.0 | 1.5-90.0 |

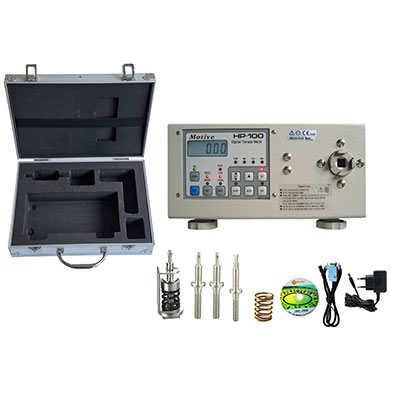

HP digital torque meters are shipped as shown at left, and include the following accessories:
(1) Fidaptor
(1) Threaded shaft 4mm
(1) Threaded shaft 5mm
(1) Hex shank(fits 5mm and 6.35mm sockets)
(1) Carrying case
(1) AC adapter
(1)Software CD data line(Purchase)
| Instruction | Certificate |
 |  |
Model
Attachments | HP-10 | HP-50 | HP-100 | |
| Hex. Shank | HP-50 HP-100 | ||
| Motive shank Φ4 | HP-10 HP-50 HP-100 | ||
| Motive shank Φ5 | HP-50 HP-100 | ||
| Buffer Spring | HP-10 HP-50 HP-100 | ||
| Buffer Spring | HP-50 HP-100 | ||
| Fidaptor | HP-50 HP-100 | ||
| Fidaptor | HP-10 | ||
Consumable parts | Specifications | |
| gauge software | HP |
| AC adapter | 100V-240V 50/60HZ |
| Load cell | 10Kgf.cm 50kgf.cm 100Kgf.cm |
| Battery | 6 sections, 1 group |
